52Q12019

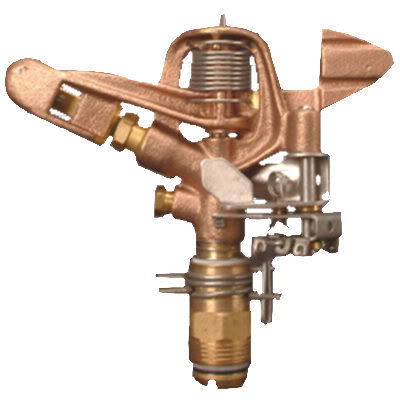

Model 756A
| Features: | Operating Range: |
| *Trajectory-25 degree. | *Pressure 25 to 50 PSI |
| *Double nozzles. | *GPM 3.80 to 14.00. |
| *Adjustable from 20 to 340 ARC & full circle. | *Spacing 42' to60' radius. |
| *Stainless steel parts. | |
| *Diffuser pin & Deflector Plate assembly. | |
| *Highest point of stream-9' above nozzle level. | |
| *Optional feature available: Less Pin & Deflector. |
